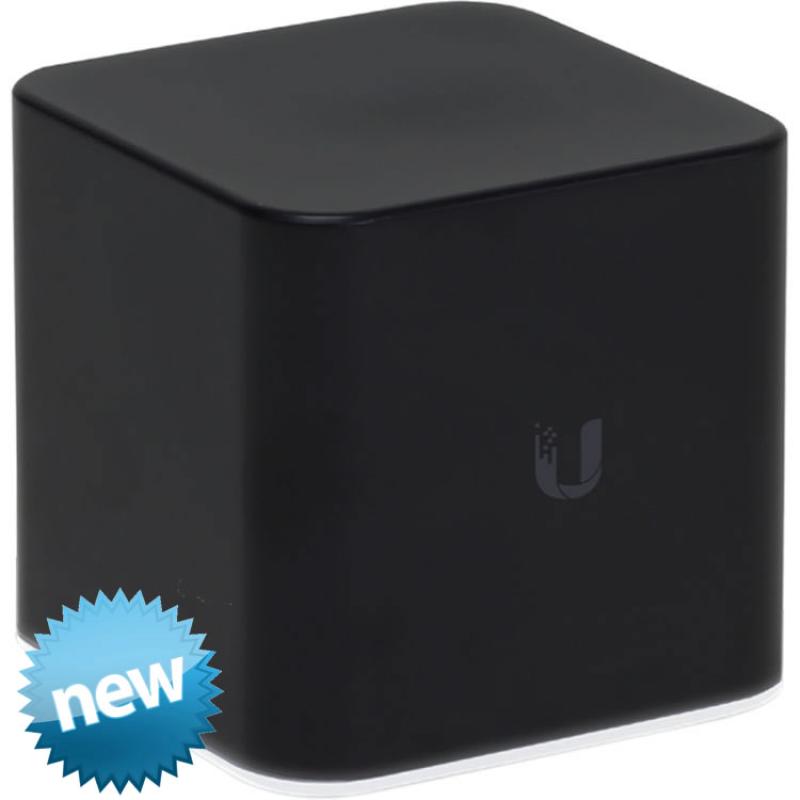

Ubiquiti
Networks’ airCube ISP is a cost-effective wireless access point for use
in your customer deployments. It offers convenient PoE passthrough to
power a 24V airMAX CPE device, so you can use a single PoE adapter to
power both devices. To provide sufficient power for PoE passthrough,
the airCube ISP requires a 24V, 1A PoE input.



The
airCube ISP is 802.11n with 2×2 MIMO Wi-Fi for speeds of up to 300 Mbps
in the 2.4 GHz radio band.



Management
options feature a graphical user interface designed for streamlined
setup and control. Available options include:

•
U Mobile App Supports quick setup and status information.

•
Web UI Enables a standalone utility for basic configuration.

•
UNMS Provides advanced remote control of Ubiquiti devices.

Product
Features

•
(4) 10/100 Fast Ethernet Ports

•
24V PoE Passthrough for airMAX CPE

•
802.11n, 2×2 MIMO Technology

•
Up to 300 Mbps in the 2.4 GHz Radio Band

•
Powered by 24V Passive PoE or 2A micro USB adapter (not included)

Product
Specifications

•
Weight: 215g

•
Power Supply: 5V

•
Supported Power Voltage: 4.95-5.05V

•
Max Power Consumption: 5W

•
PoE Out: Controllable 24V PoE Out (+4, 5; -7, 8) on WAN Port

•
Management Interface: Wi-Fi / Ethernet

•
Networking Interface: (4) 10/100 Fast Ethernet Ports

•
Max. TX Power: 22dBm

•
Antenna Gain: 4dBi

•
Max. Speeds: 300Mbps

•
Enclosure Characteristics: Black Plastic

•
ESD/EMP Protection: ±24 kV Contact / Air

•
Operating Temperature: -10 to 50° C (-14 to 122° F)

•
Operating Humidity: 5 to 95% Non-condensing

Product
Includes

(1)
Ubiquiti airCube ISP

(1)
Quick Start Guide
