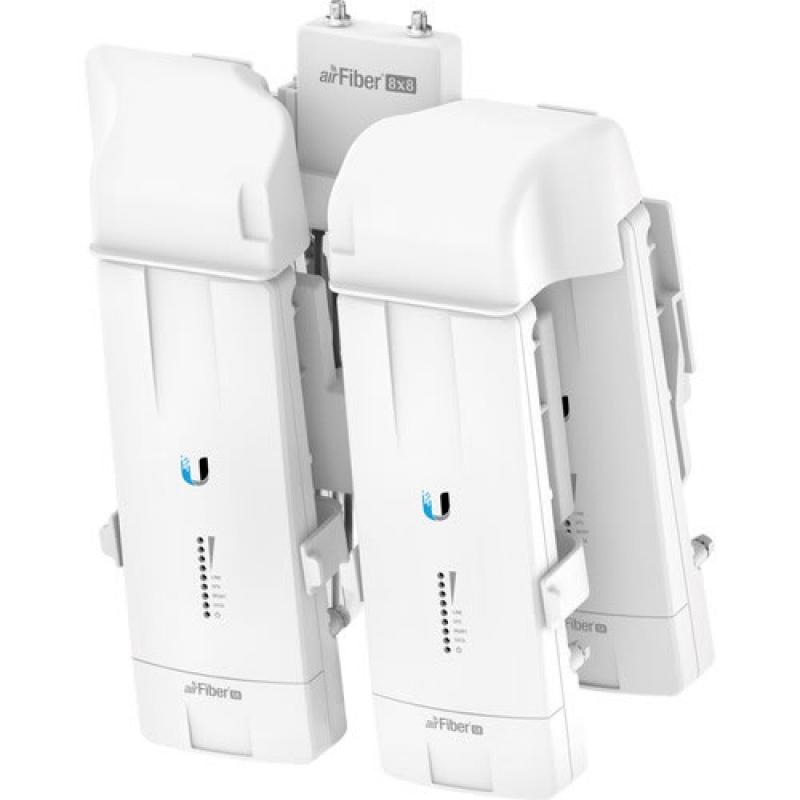

The airFiber NxN is a thoughtfully engineered MIMO multiplexer that
increases the amazing throughput of your airFiber link by up to 400%,
while simultaneously establishing redundancy without the need of
additional antennas. The airFiber NxN is a scalable MIMO multiplexer
that combines multiple airFiber 5X radios on a single dish antenna for
superior noise immunity performance, redundancy, and multi-Gigabit
throughput. Upgrading a 5 GHz airMAX or airFiber link is fast and easy.
simply attach the airFiber NxN to the fast-mount on the antenna and
connect the RF cables.

Product Features

• 8×8 MIMO backhaul technology: Simply mount four airFiber 5X radios
for Plug and Play installation. You can use multiple channels and place
them anywhere within the radio band
• Reduced tower footprint and cost: Multiple airFiber 5X radios mounted
on a single dish antenna maximizes throughput and capacity in a clean,
compact tower footpring, minimizing tower costs
• Superior link redundancy solution: Multiple airFiber X radios with
multiple carriers on multiple frequency bands provide the ultimate
noise immunity and link redundancy performance
• Mounting versatility: The airFiber NxN Multiplexer can be attached to
most 5 GHz airFiber X or RocketDish antenna models. For any other
antenna configuration, you can mount the airFiber NxN Multiplexer on a
pole
• Pair with EdgePoint: The EdgePoint provides link aggregation and
powerful configuration features, including radiolink load balancing and
advances reliability for optical fiber deployments

Product Specifications

• Redundant link: Up to 3
• Aggregate throughput: 2+ Gbps
• Dimensions: 210.5 x 240.9 x 109 mm (8.29 x 9.48 x 4.29″)
• Weight: 0.45 kg (1.0 lb)
• RF Connectors: (2) RP-SMA Weatherproof (CH0, CH1) ; (8) RP-SMA
Weatherproof (A0, A1, B0, B1, C0, C1, D0, D1)
• Cable Loss: 7.2 dB
• Supported airFiber X Radio: AF-5X
• Multiplex MIMO: 4 x (2×2)
• Mounting: airFiber X/Rocket Mount Compatible

Product Includes

• (1) AF-MPx8 airFiber NxN Multiplexer
• (1) 4×4 Radio Bracket
• (1) 8×8 Radio Bracket
• (2) Protective Shrouds (left and right)
• (2) M4x12 Screws
• (4) M3x8 Screws
• (1) Quick Start Guide
